CT Operated DIN Rail Three Phase MID Energy Meter for Modern Energy Monitoring

In industrial, commercial, and advanced residential electrical installations, energy data has become a strategic resource rather than a simple billing figure. Facility managers, electrical contractors, machine builders, panel manufacturers, and system integrators need reliable information about consumption, voltage, current, power factor, demand, frequency, and energy direction. A CT operated DIN rail three phase MID energy meter with RS485 Modbus communication is designed to meet this requirement by combining certified metering accuracy, flexible installation, compact construction, and digital communication in one device.

The RS485 Modbus CT operated DIN rail three phase MID energy meter described here is a three phase multi-function energy meter designed for monitoring energy consumption and multiple electrical parameters in three phase AC systems. It supports 3P4W, 3P3W, and 1P2W applications, works with 1A and 5A current transformer secondary inputs, and offers bi-directional measurement. The meter provides active and reactive energy measurement, multi-parameter electrical monitoring, pulse outputs, and RS485 Modbus RTU communication. Variants may also support M-Bus, LoRaWAN, or dual power source configurations, making it suitable for many energy management and sub-metering environments.

Unlike simple kWh meters that only record imported active energy, this product is intended for projects that require deeper visibility into power quality, equipment loading, distribution efficiency, renewable energy contribution, and energy cost allocation. It measures kWh, kVarh, W, Var, VA, power factor, frequency, demand, voltage, and other essential parameters. This broad measurement capability allows the meter to support both traditional billing-related applications and modern smart energy management systems.

The product is manufactured by Eastron Electronic Co., Ltd., a high-tech manufacturer of electricity products and energy measurement solutions headquartered in Jiaxing, China. The company develops and produces electricity meters, power analyzers, current sensors, communication modules, and management systems. With development teams in China and the United Kingdom, cooperation with universities and institutions, professional testing capability, and ISO 9001 quality management, the company provides an industrial foundation that supports product performance, consistency, and long-term reliability.

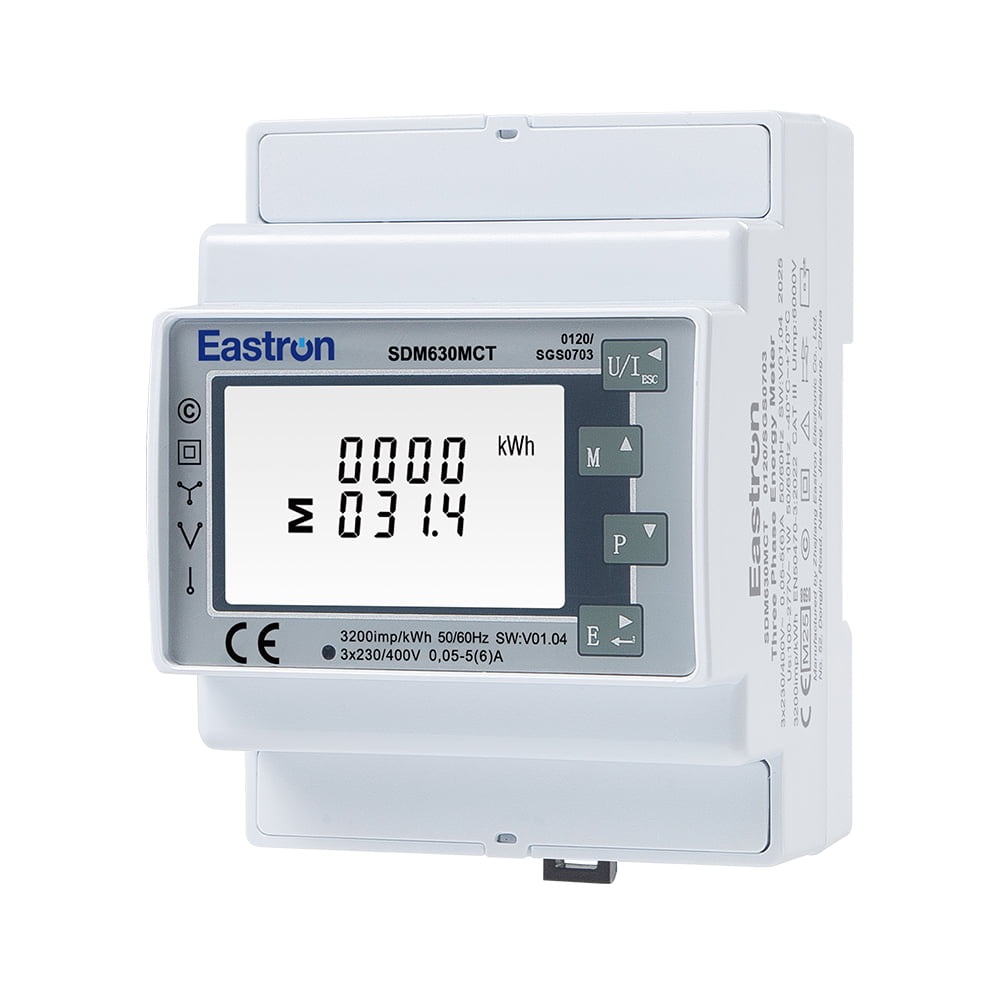

RS485 Modbus CT operated Din Rail Three Phase MID Energy Meter

Product Overview

This CT operated DIN rail three phase MID energy meter is designed for electrical systems where the current level is higher than the direct input capacity of a compact meter. Instead of routing large load currents directly through the meter, external current transformers are used. The meter receives 1A or 5A secondary current signals from the CTs, while the primary CT ratio can be configured across a wide range from 1A to 9999A. This architecture makes the meter suitable for switchboards, distribution panels, machinery control cabinets, renewable energy systems, commercial buildings, industrial workshops, and multi-tenant facilities.

The meter can be used in three phase four wire systems, three phase three wire systems, and single phase two wire systems. This flexibility is a strong advantage for contractors and panel builders who want to standardize on one metering platform for different installation types. Instead of selecting separate meters for every wiring configuration, users can apply the same series across diverse electrical architectures, simplifying stock management, training, commissioning, and maintenance.

The unit has a compact four-module DIN rail design with a width of 72 mm. In crowded electrical panels, space matters. A compact meter reduces enclosure size pressure and makes it easier to integrate metering into existing systems. Compared with bulkier panel meters or older multi-function meters requiring larger cutouts, the DIN rail structure provides faster installation and a cleaner cabinet layout.

The meter is CT and PT operated, which means it can be used in applications requiring both current transformer and potential transformer arrangements. This is important in installations where voltage levels or system architecture require voltage scaling or isolation. The ability to work with CTs and PTs expands the application range beyond simple low-voltage monitoring.

The product includes two pulse outputs and built-in RS485 Modbus communication in the Modbus version. Pulse outputs remain useful for traditional data loggers, building management systems, remote counters, and simple energy collection devices. RS485 Modbus RTU, meanwhile, supports modern digital integration with energy management software, programmable logic controllers, gateways, data concentrators, SCADA platforms, and cloud-connected monitoring systems.

Why CT Operated Metering Matters

CT operated metering is essential when load currents exceed the direct connection limits of standard compact meters. In commercial and industrial systems, currents may range from tens to thousands of amperes. Passing such current directly through a small meter is impractical, unsafe, and inefficient. Current transformers solve this challenge by converting high primary currents into standardized secondary signals, typically 1A or 5A, that the meter can measure accurately.

This product supports both 1A and 5A CT secondary inputs. That dual compatibility offers practical advantages over products limited to only one CT secondary rating. In retrofit projects, existing CTs may already be installed. If the meter only accepts one secondary rating, replacement CTs may be required, increasing labor, downtime, and cost. A meter that accepts 1A and 5A signals can fit more existing installations and reduce project complexity.

The configurable CT primary range from 1A to 9999A further enhances adaptability. It allows installers to match the meter to a broad spectrum of CT ratios. This is especially valuable for panel manufacturers and system integrators who serve different customer sites with different current levels. A single metering platform can be configured for small sub-distribution boards, large feeders, equipment lines, or utility-adjacent metering points.

CT operated metering also improves safety and serviceability. Because the meter receives secondary current signals, it avoids direct exposure to the full load current. When installed correctly with appropriate CT shorting and wiring practices, the system supports safer cabinet design and easier maintenance. This is one reason CT operated meters remain a preferred choice in industrial and commercial energy monitoring projects.

MID Certification and Accuracy Advantages

One of the major strengths of this product is its MID compliance. The instrument has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU, with traceability identified by instrument number 0120/SGS0703. For applications in Europe and other markets where MID-compliant energy measurement is required or preferred, this certification provides confidence that the meter has been evaluated according to recognized metrological requirements.

The meter supports active energy accuracy according to Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21, and Class B and C EN50470-3:2022. Reactive energy is measured according to Class 2 IEC 62053-23. These accuracy classes make the product suitable for demanding energy monitoring tasks where reliable data is required for cost allocation, efficiency analysis, tenant sub-metering, equipment benchmarking, and operational decision-making.

Compared with non-certified or basic monitoring meters, an MID energy meter provides a stronger basis for applications where measurement credibility matters. While non-certified devices may be acceptable for rough indication, certified metering gives stakeholders greater trust in the readings. This can be especially important in shared facilities, commercial property management, electric vehicle infrastructure, renewable energy monitoring, and industrial energy cost allocation.

The meter measures RMS values including harmonics on three phase AC systems. This is a meaningful advantage because real electrical loads are often non-linear. Variable frequency drives, power supplies, LED lighting, inverters, automation equipment, and electronic machinery can introduce harmonic content into current and voltage waveforms. A meter designed for RMS measurement including harmonics provides more representative readings than instruments optimized only for ideal sinusoidal waveforms.

Electrical measurement accuracy covers voltage at ±0.5%, current at ±0.5%, frequency at ±0.2%, power factor at ±1%, active power at ±1%, reactive power at ±1%, and apparent power at ±1%. These specifications enable the device to serve not only as an energy counter but also as a monitoring instrument for electrical network performance.

Multi-Function Measurement for Deeper Visibility

Modern energy management requires more than total kWh. A facility may use a large amount of energy, but without detailed electrical parameters, managers cannot identify whether the issue is peak demand, poor power factor, unbalanced phases, abnormal voltage, excessive reactive power, or inefficient equipment operation. This meter addresses that challenge through multi-function measurement.

The device measures active energy, reactive energy, active power, reactive power, apparent power, power factor, frequency, demand, voltage, and related electrical values. These measurements allow users to move from simple consumption recording to operational analysis. For example, monitoring power factor can help determine whether compensation equipment is required. Tracking demand can reveal peak loading patterns. Measuring voltage and current can support phase balancing and equipment protection decisions.

Bi-directional measurement is another key feature. In many modern installations, energy does not always flow in one direction. Solar photovoltaic systems, battery storage, regenerative drives, and distributed generation can export energy back into the local network. A meter with bi-directional measurement can record both import and export energy, making it far more suitable for renewable and distributed energy environments than a simple import-only device.

Demand measurement is particularly important in commercial and industrial settings. Utilities often charge customers based not only on total consumption but also on maximum demand. A meter that helps monitor demand can support load scheduling, demand response strategies, and equipment sequencing. Facility managers can use demand data to reduce peak charges and improve capacity planning.

Frequency monitoring, while often overlooked, provides an additional indicator of supply stability. In certain microgrid, generator, or backup power applications, frequency can fluctuate under changing load conditions. Having frequency data available through the meter supports more complete supervision of the electrical system.

Communication Capabilities

The RS485 Modbus RTU interface is central to the product’s value in automated energy monitoring. Modbus RTU remains one of the most widely used communication protocols in industrial and building automation because it is simple, reliable, and broadly supported. The meter’s RS485 interface can be integrated with PLCs, gateways, data loggers, SCADA platforms, energy management systems, and building management systems.

The Modbus communication address range is 1 to 247, allowing many meters and devices to share the same RS485 network. The maximum transmission distance is specified as 1000 meters, which is suitable for large buildings, production facilities, campuses, and distributed cabinet installations when proper cabling and network design practices are applied. The transmission speed range of 1200 bps to 38400 bps offers flexibility for different network conditions and device compatibility requirements.

Parity settings include none as the default, odd, and even. Stop bits can be configured as 1 or 2, and response time is less than 100 ms. These parameters provide practical flexibility for integration into existing Modbus networks. In retrofit projects, matching the communication settings of existing equipment can be decisive for successful deployment.

Compared with meters that only provide pulse output, RS485 Modbus communication allows more data to be collected with greater context. Pulse output can indicate energy accumulation, but it does not provide voltage, current, power factor, demand, frequency, or detailed energy direction data. Modbus enables a richer dataset, which is essential for energy analytics, predictive maintenance, load profiling, and remote supervision.

Pulse outputs still remain valuable. The device provides two pulse outputs, enabling compatibility with legacy counting systems, simple remote energy accumulators, or redundant data acquisition methods. In many installations, pulse output and Modbus communication can be used together: pulse output for billing verification or simple counting, and Modbus for advanced monitoring.

Some versions provide M-Bus communication according to EN13757-3. M-Bus is often used in building metering applications, especially in Europe, where centralized collection of utility meter data is common. The M-Bus communication address range is 1 to 250, with transmission distance up to 1000 meters, baud rate from 300 bps to 9600 bps, parity options of none, odd, and even, and stop bits of 1 or 2.

Other variants may support LoRaWAN communication with frequency options such as EU868, AS923, AU915, US915, and others. LoRaWAN can be beneficial where long-distance wireless communication is needed and wired communication is difficult or costly. This option expands the product family into smart building, distributed metering, and remote monitoring scenarios.

Core Technical Specifications

Specification Area	Key Details	Practical Benefit
System Compatibility	3P4W, 3P3W, and 1P2W	Supports multiple wiring configurations with one metering platform.
Current Input	1A or 5A CT secondary	Works with common current transformer outputs and retrofit projects.
CT Primary Range	1A to 9999A	Adapts to small and large electrical loads.
Voltage Rating	230V L-N or 120V L-N	Suitable for different low-voltage distribution environments.
Operating Voltage	80% to 120% of Un	Maintains operation across normal voltage variation.
Active Energy Accuracy	Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21, Class B and C EN50470-3:2022	Provides dependable data for certified metering applications.
Reactive Energy Accuracy	Class 2 IEC 62053-23	Supports reactive energy analysis and power factor management.
Communication	RS485 Modbus RTU, with variants for M-Bus or LoRaWAN	Integrates with modern monitoring and automation systems.
Outputs	Two pulse outputs plus digital communication depending on model	Provides compatibility with both legacy and digital data systems.
Mounting Format	DIN rail, four modules, 72 mm wide	Saves panel space and simplifies installation.

Advantages Over Typical Competing Meters

The first competitive advantage is flexibility. Many competing meters are limited to one wiring system, one CT secondary rating, or one communication method. This product supports 3P4W, 3P3W, and 1P2W systems, accepts 1A and 5A CT secondary inputs, and offers multiple communication options across the product family. This flexibility reduces the number of meter types that distributors, contractors, and panel builders need to manage.

The second advantage is certified accuracy. Basic meters may provide low-cost measurement, but they often lack the certification level required for regulated or trust-sensitive applications. With MID compliance and active energy accuracy classes including Class 0.5S, Class 1.0, and EN50470-3:2022 Class B and C, this meter provides a stronger technical and compliance foundation.

The third advantage is multi-parameter visibility. Some competing energy meters only display kWh or a limited set of values. This meter provides a wider electrical picture, including kWh, kVarh, W, Var, VA, power factor, frequency, demand, and voltage. As energy management becomes more data-driven, multi-function measurement can produce far greater long-term value than simple energy counting.

The fourth advantage is compact DIN rail installation. Electrical panels are often congested, especially in retrofit and multi-meter applications. A four-module, 72 mm wide device helps conserve space. Compared with larger panel-mounted instruments, it simplifies layout and can reduce enclosure modification requirements.

The fifth advantage is integration readiness. RS485 Modbus RTU, pulse outputs, and optional M-Bus or LoRaWAN variants mean the product can connect to a wide range of systems. A competitor with only pulse output cannot support detailed remote monitoring. A competitor with only a proprietary protocol may create integration barriers. This meter uses widely adopted communication methods that reduce engineering effort.

The sixth advantage is support for bi-directional energy measurement. This feature is increasingly important as renewable energy, battery storage, electric vehicle charging, and distributed energy resources become more common. A meter that measures both directions is better suited for future-oriented installations than an import-only meter.

The seventh advantage is the manufacturer’s testing and development capability. Product performance is not defined only by the specification sheet. It also depends on design discipline, calibration, quality management, component control, and production consistency. Eastron’s professional laboratory, ISO 9001 quality management, MID production approval by SGS, and experience in metering technology support a stronger production foundation than suppliers that rely only on outsourced assembly or minimal in-house testing.

Applications in Commercial and Industrial Facilities

Commercial buildings often need sub-metering for tenants, floors, equipment rooms, electric vehicle charging areas, HVAC systems, lighting panels, and renewable energy systems. This meter is well suited to such applications because it combines compact size, certified measurement, communication capability, and CT operated input. It can be installed in distribution boards to collect energy data without routing high feeder currents through the meter body.

In industrial facilities, the meter can monitor production lines, workshops, compressors, pumps, motors, welding areas, heating systems, and process equipment. Industrial energy use is often dynamic, and peak demand can significantly affect operating cost. By collecting power, demand, current, voltage, and energy data, the meter helps facility teams identify inefficient loads, overload risks, abnormal consumption patterns, and opportunities for demand reduction.

For panel builders and original equipment manufacturers, the meter can be integrated into control panels and distribution cabinets as a standard energy monitoring component. Its DIN rail mounting format supports fast assembly, while RS485 Modbus enables connection to PLCs and HMIs. Machine builders can use the meter to display machine energy consumption, support energy performance reporting, or enable customer-facing monitoring features.

In renewable energy systems, bi-directional measurement is particularly valuable. Solar photovoltaic systems and storage systems may import energy from the grid at some times and export energy at others. Measuring both directions supports more complete understanding of energy flows. When connected to a data gateway, the meter can contribute to renewable energy dashboards and performance analysis.

In multi-site retail chains, hotels, offices, schools, and hospitals, energy monitoring at the distribution level helps compare energy performance across locations. Standardizing on a meter with Modbus communication enables centralized data acquisition and benchmarking. The compact format and flexible CT range make it easier to deploy the same meter design across different site sizes.

Role in Energy Management Systems

An energy management system depends on accurate field data. Without dependable metering, software dashboards and analytics are only as good as the assumptions behind them. This CT operated MID meter provides the measurement layer needed for structured energy management. When connected through RS485 Modbus, data can be collected automatically and used for trend analysis, alarms, reports, and optimization.

Energy managers can use the meter to divide total building consumption into meaningful segments. For example, one meter may monitor HVAC, another lighting, another production equipment, and another renewable generation. Once each load category is measured separately, it becomes easier to identify waste, calculate energy intensity, allocate costs, and verify savings from efficiency projects.

The meter also supports maintenance planning. Abnormal current imbalance, unexpected demand increases, power factor changes, or voltage variations may indicate equipment issues. While the meter is not a full power quality analyzer, its multi-function measurements provide useful early indicators. Integrating these readings into a monitoring platform can help maintenance teams act before minor issues become failures.

For sustainability reporting, reliable consumption data is essential. Organizations increasingly track carbon emissions, energy intensity, and renewable energy contribution. A network of accurate meters helps convert sustainability goals into measurable performance indicators. Because the meter supports communication and certified measurement, it can become part of a credible energy data infrastructure.

Installation and Commissioning Considerations

Proper installation is essential for obtaining accurate readings from any CT operated meter. CT orientation, phase matching, voltage reference wiring, CT ratio configuration, and communication settings must be correctly applied. The meter’s support for 3P4W, 3P3W, and 1P2W systems provides installation flexibility, but installers must select the appropriate configuration for the electrical system.

The CT secondary rating must match the meter setting. If 5A CTs are used, the meter must be configured accordingly. If 1A CTs are used, the correct input configuration must be selected. The CT primary value must also be set to match the actual current transformer ratio. For example, a 500A/5A CT requires a different primary setting than a 1000A/5A CT. Incorrect CT ratio programming will cause proportional energy and power reading errors.

CT polarity is another common commissioning issue. If a CT is reversed, the meter may show negative power or incorrect energy direction. Because the meter supports bi-directional measurement, installers should carefully verify import and export directions during commissioning. This is particularly important in systems with generation or storage.

Voltage and current phase matching must also be checked. The voltage input for each phase should correspond to the correct current transformer phase. Crossed phase connections can cause incorrect power factor and power readings even if voltage and current magnitudes appear normal. During commissioning, readings should be compared against expected load conditions to confirm correct wiring.

For Modbus communication, installers should set a unique communication address between 1 and 247, select the correct baud rate, parity, and stop bits, and verify RS485 polarity. Good RS485 network practice includes suitable twisted pair cable, correct termination where required, proper grounding strategy, and avoidance of excessive stubs. The specified maximum distance of 1000 meters provides strong capability, but actual performance depends on network design and electrical noise conditions.

Manufacturing Strengths Behind the Meter

The quality of an energy meter depends heavily on the manufacturer’s design, calibration, testing, and quality control systems. Eastron Electronic Co., Ltd. has established itself as a manufacturer and supplier of electricity products and energy measurement solutions, with a product range covering electricity meters, power analyzers, current sensors, communication modules, and management systems. This broad technical background supports integrated product development rather than isolated assembly.

The company is headquartered in Jiaxing, China, near Shanghai, Hangzhou, and Jiangsu. This location provides access to developed industrial supply chains, logistics networks, technical talent, and export infrastructure. For global customers, a strong manufacturing base is important because metering projects often require stable supply, consistent product quality, technical support, and long-term availability.

The company continues to invest in research and development of new technologies and new products for electricity metering. Energetic and innovative development teams in China and the United Kingdom contribute to product competitiveness. Cooperation with leading universities and institutions helps bring advanced technology into its products. This combination of internal engineering and external collaboration supports ongoing improvement in measurement, communication, embedded software, and hardware design.

A professional laboratory is a significant manufacturing strength. Eastron has established its own laboratory capable of performing EMC, LVD, accuracy, and environmental tests according to IEC, EN, GB, and UL standards. This allows the company to evaluate product performance across critical conditions before and during production. EMC testing helps ensure that the meter can operate in electrically noisy environments. LVD testing supports electrical safety. Accuracy testing supports metrological performance. Environmental testing helps validate reliability under temperature, humidity, and other operational stresses.

The company holds patented technologies in software, embedded software, and hardware. In modern energy meters, embedded software is as important as physical hardware. Measurement algorithms, communication handling, data storage, display logic, calibration routines, and protection functions all depend on reliable embedded design. Patented technologies suggest continued technical development and product differentiation.

The manufacturer follows the ISO 9001 quality management system, and its production is approved by SGS according to MID standards. ISO 9001 provides a structured framework for process control, documentation, corrective action, supplier management, and continuous improvement. SGS-approved MID production supports confidence that the certified products are manufactured under controlled conditions, not only tested once at the design stage.

The company has been recognized as a High-tech Enterprise and High-tech R&D Centre of Electricity Application. These recognitions reflect a focus on technology-based development. For customers choosing an energy meter, this matters because metering requirements continue to evolve with smart grids, renewable energy, digital buildings, and industrial automation. A manufacturer with ongoing R&D capability is better positioned to support future needs.

Quality Assurance and Reliability

Reliability in an energy meter is not optional. Meters are often installed inside distribution cabinets and expected to operate continuously for years. Failure can cause data loss, maintenance cost, billing disputes, or monitoring blind spots. The product’s manufacturing background and testing capability help address these concerns.

Accuracy testing ensures that voltage, current, power, energy, and related values remain within stated tolerance. Because the product is intended for certified energy measurement, accuracy verification is a core part of product credibility. The meter’s active energy accuracy classes and MID certification depend on disciplined production and calibration procedures.

EMC testing is especially relevant in industrial applications. Electrical cabinets may contain contactors, variable frequency drives, switching power supplies, relays, motors, and high-current cables. These devices can create electromagnetic interference. A meter used in such environments must be designed and tested to withstand realistic electromagnetic conditions.

Environmental testing is also important because meters may be installed in mechanical rooms, switchgear rooms, outdoor enclosures, factories, and other challenging environments. Temperature variation, humidity, vibration from nearby equipment, and long operating hours all place stress on electronic products. A manufacturer with environmental testing capability can better validate product durability.

Communication reliability is another important quality factor. The meter’s RS485 Modbus communication must remain stable in multi-device networks. Response time below 100 ms supports efficient data polling. Configurable parity, baud rate, and stop bit settings allow integration into many communication environments. Reliable communication reduces troubleshooting time and improves system confidence.

Design Value for Panel Builders and System Integrators

Panel builders benefit from products that are compact, standardized, flexible, and easy to integrate. This meter’s four-module DIN rail format supports efficient cabinet design. Its CT operated input removes the need to pass large load current through the meter, simplifying power circuit layout. Its multi-system wiring support allows the same device type to be used in different panel projects.

System integrators benefit from Modbus RTU communication because it is widely understood and supported. Integration with gateways, PLCs, data loggers, and energy platforms is generally straightforward when register maps and communication settings are properly configured. The availability of pulse outputs also supports projects where the end customer uses older data collection systems.

Because the meter measures many electrical parameters, integrators can deliver more complete dashboards and reports. Instead of showing only consumption, a system can display voltage, current, power, power factor, demand, and energy direction. This creates a more valuable solution for the end user and helps integrators differentiate their projects.

The product family’s optional M-Bus and LoRaWAN communication variants also help integrators match project requirements. Wired Modbus may be preferred in industrial cabinets. M-Bus may be preferred in building utility metering. LoRaWAN may be useful when long cable runs are impractical. A product family with multiple communication options can support broader project coverage.

Comparison with Direct Connected Energy Meters

Direct connected meters are suitable for lower current circuits where the load current can safely pass through the meter. They are often simple and economical for small circuits. However, in larger three phase installations, direct connected meters become less practical because of current capacity limitations, wiring complexity, heat considerations, and safety concerns.

A CT operated meter offers a better solution for higher current systems. The current transformer carries the primary current, while the meter measures the secondary signal. This enables measurement of large loads without requiring oversized meter terminals or heavy conductors through the device. The result is a safer, more scalable, and more cabinet-friendly approach.

Compared with a direct meter, a CT operated meter requires correct CT selection and configuration. This adds a commissioning step, but the tradeoff is far greater current range and installation flexibility. For professional electrical projects, this tradeoff is usually worthwhile because the meter can adapt to many current levels and cabinet arrangements.

The configurable CT primary range from 1A to 9999A makes this product especially versatile. A direct connected meter might be limited to a fixed current rating, while this CT operated meter can be paired with a suitable CT for a broad range of load sizes. This scalability is one of the reasons CT operated meters are widely used in industrial and commercial energy monitoring.

Data Accuracy for Cost Allocation and Tenant Metering

In multi-tenant buildings, energy cost allocation can become sensitive. Tenants expect fair measurement, property managers need reliable data, and disputes can occur if readings are unclear or inconsistent. MID-certified metering helps provide confidence in measurement integrity. A certified meter with communication capability can support transparent energy allocation processes.

For commercial landlords, sub-metering helps identify the energy use of individual tenants, floors, retail units, or service areas. Because this meter supports CT operation, it can be applied to larger tenant feeders where direct meters may not be appropriate. Modbus communication allows readings to be collected remotely, reducing manual reading effort and improving reporting frequency.

In industrial plants, cost allocation may be applied by department, production line, or process. Accurate metering allows managers to assign energy cost more fairly and identify high-consumption operations. This can encourage internal energy accountability and support efficiency investment decisions.

Bi-directional measurement can also be useful for cost allocation in sites with local generation. If one area exports energy or offsets another area’s consumption, energy direction data helps create a more accurate picture of internal energy flows. This is increasingly relevant as distributed energy resources become more common.

Support for Power Factor and Reactive Energy Management

Power factor affects the efficiency of electrical distribution and may influence utility charges. Poor power factor means more current is required to deliver the same useful power, increasing losses and reducing capacity. The meter measures power factor, reactive power, and reactive energy, allowing users to evaluate whether compensation measures are needed.

Reactive energy measurement according to Class 2 IEC62053-23 supports analysis of inductive and capacitive load behavior. Motors, transformers, welding equipment, and certain industrial loads can contribute significant reactive power. By monitoring reactive energy, facility teams can assess compensation performance and detect changes in load characteristics.

Power factor data can also help verify capacitor bank operation. If power factor remains low despite installed compensation equipment, the meter data may indicate that the capacitor bank is incorrectly sized, malfunctioning, or not switching properly. This transforms the meter from a passive billing device into an operational diagnostic tool.

Value in Renewable Energy and Distributed Generation

Energy systems are changing. Buildings and factories increasingly include solar photovoltaic generation, battery storage, generator backup, electric vehicle charging, and intelligent load control. These systems create more complex energy flows than traditional one-way utility supply. A bi-directional CT operated meter is well matched to this new environment.

In a solar installation, the meter can monitor energy imported from or exported to the grid depending on the installation design. In a battery energy storage system, it can help track charging and discharging energy flow. In a microgrid, it can monitor feeder behavior and support energy balancing. The ability to capture both directions of energy makes the meter more future-ready than traditional one-direction devices.

Modbus communication also supports renewable energy monitoring platforms. Data can be collected by gateways and sent to local or cloud dashboards. Energy managers can compare generation, load consumption, grid import, and grid export. This visibility supports better decisions about self-consumption, peak shaving, storage operation, and tariff optimization.

ETL Listing and International Market Confidence

The meter is also ETL listed by Intertek. ETL listing is an important signal for markets where electrical safety and product conformity are evaluated through recognized third-party testing organizations. For international customers, the combination of MID certification and ETL listing provides broader confidence in product compliance and manufacturing quality.

Global projects often require products that can satisfy multiple technical expectations. A meter used in Europe may need MID compliance, while projects connected to North American standards may value ETL listing. A product with recognized certifications can simplify approval processes and procurement decisions for international system integrators and distributors.

The manufacturer’s laboratory capability according to IEC, EN, GB, and UL standards further supports international readiness. Electrical products used across different countries must meet diverse expectations for safety, electromagnetic compatibility, and performance. A company familiar with multiple standards can better design products for global use.

Operational Efficiency and Long-Term Return

The value of an energy meter should not be measured only by purchase price. A lower-cost meter with limited accuracy, poor communication, or insufficient reliability can cost more over time through installation problems, data gaps, troubleshooting, replacement, and reduced decision quality. This product is positioned as a professional energy monitoring device that delivers long-term value through reliable data and flexible integration.

By supporting multiple wiring systems and CT ratios, the meter reduces inventory complexity. By providing Modbus and pulse outputs, it supports both modern and legacy systems. By offering certified accuracy, it reduces uncertainty in energy reporting. By measuring many parameters, it helps identify efficiency opportunities. By fitting into a compact DIN rail footprint, it reduces panel space pressure.

For facility owners, the return comes from better energy visibility, reduced manual reading, improved cost allocation, and more effective energy management. For contractors, the return comes from easier standardization and fewer application mismatches. For system integrators, the return comes from richer data and easier platform integration. For distributors, the return comes from a product family that can address many customer requirements.

Practical Selection Guidance

When selecting this type of meter, users should first confirm the electrical system type: three phase four wire, three phase three wire, or single phase two wire. They should then determine the required CT ratio based on the maximum load current. The CT secondary should be 1A or 5A to match the meter’s supported inputs. The primary setting should be configured during commissioning.

Users should also confirm the voltage environment. The rated voltage options include 230V L-N and 120V L-N, with operational voltage from 80% to 120% of Un. If potential transformers are required, the installation should be designed accordingly.

Communication requirements should be defined early. If the project uses industrial automation or energy management software, RS485 Modbus RTU is usually appropriate. If the project is a building utility metering network, M-Bus may be preferred. If wiring is difficult and long-range wireless communication is needed, a LoRaWAN variant may be considered. Pulse output requirements should also be reviewed for compatibility with existing systems.

Certification needs should be checked based on the application and region. For regulated metering, billing-related use, or tenant allocation where recognized measurement confidence is required, MID certification may be important. For projects requiring third-party safety listing, ETL listing can be relevant.

Q&A Section

What is the main purpose of this CT operated three phase MID energy meter?

The main purpose is to measure energy consumption and multiple electrical parameters in three phase or compatible single phase systems using external current transformers. It is suitable for energy monitoring, sub-metering, cost allocation, demand analysis, and integration into energy management systems.

Why does the meter use current transformers instead of direct current input?

Current transformers allow the meter to monitor high-current circuits safely and efficiently. The CT converts the primary load current into a 1A or 5A secondary signal that the meter can measure. This makes the product suitable for large commercial and industrial loads.

Which wiring systems does the meter support?

The meter supports three phase four wire, three phase three wire, and single phase two wire systems. This flexibility helps contractors and panel builders use the same metering platform across different installation types.

What communication interface is available?

The Modbus version provides RS485 Modbus RTU communication and two pulse outputs. Other variants may provide M-Bus EN13757 or LoRaWAN communication depending on the model selected.

What is the advantage of RS485 Modbus RTU?

RS485 Modbus RTU is widely used in industrial and building automation. It allows the meter to transmit detailed data such as energy, voltage, current, power, power factor, frequency, and demand to gateways, PLCs, SCADA systems, and energy management platforms.

Is the meter suitable for renewable energy systems?

Yes. The meter supports bi-directional measurement, which is important for systems where energy may flow in both directions, such as solar photovoltaic installations, battery storage systems, and distributed generation applications.

What does MID certification mean for users?

MID certification indicates that the meter has been assessed according to the requirements of EU Directive 2014/32/EU. It provides confidence in metrological performance for applications where certified energy measurement is required or preferred.

What accuracy classes does the meter support?

The meter supports active energy accuracy according to Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21, and Class B and C EN50470-3:2022. Reactive energy accuracy is Class 2 according to IEC62053-23.

How wide is the meter?

The meter has a four-module DIN rail design and is 72 mm wide. This compact size helps save space in electrical panels and distribution cabinets.

What makes the product competitive compared with basic energy meters?

Its advantages include CT operated flexibility, MID-certified accuracy, multi-function measurement, bi-directional energy monitoring, compact DIN rail mounting, two pulse outputs, RS485 Modbus communication, and optional communication variants such as M-Bus and LoRaWAN.

What manufacturing strengths support the product?

The manufacturer has research and development teams, a professional laboratory for EMC, LVD, accuracy, and environmental testing, ISO 9001 quality management, SGS-approved MID production, patented technologies, and experience supplying electricity products and energy measurement solutions to international markets.

Conclusion

A CT operated DIN rail three phase MID energy meter with RS485 Modbus communication is more than a consumption counter. It is a compact, certified, multi-function measurement device designed for modern energy visibility. By supporting 1A and 5A CT inputs, 3P4W, 3P3W, and 1P2W systems, configurable CT primary ratings, bi-directional measurement, pulse outputs, and Modbus communication, it provides practical flexibility for a wide range of electrical installations.

Its accuracy classes, MID certification, RMS measurement including harmonics, and ETL listing support confidence in professional applications. Its multi-parameter measurement helps users understand not only how much energy is consumed, but also how electrical systems behave. Its communication features make it ready for energy management platforms, building automation systems, industrial monitoring networks, and smart infrastructure projects.

The product’s value is strengthened by the manufacturing capabilities of Eastron Electronic Co., Ltd. The company’s focus on research and development, professional testing, quality management, patented technologies, and international standards creates a strong foundation behind the meter. For contractors, panel builders, system integrators, facility managers, and energy professionals, this combination of certified performance, installation flexibility, and manufacturing strength makes the meter a compelling choice for modern energy monitoring and sub-metering projects.

References

European Parliament and Council. Directive 2014/32/EU on Measuring Instruments.

International Electrotechnical Commission. IEC 62053-22: Electricity Metering Equipment, Particular Requirements for Static Meters for Active Energy.

International Electrotechnical Commission. IEC 62053-21: Electricity Metering Equipment, Particular Requirements for Static Meters for Active Energy.

International Electrotechnical Commission. IEC 62053-23: Electricity Metering Equipment, Particular Requirements for Static Meters for Reactive Energy.

European Committee for Standardization. EN 50470-3:2022 Electricity Metering Equipment, Particular Requirements for Static Meters for Active Energy.

European Committee for Standardization. EN 13757-3 Communication Systems for Meters and Remote Reading of Meters.

International Organization for Standardization. ISO 9001 Quality Management Systems Requirements.

Intertek. ETL Product Safety and Conformity Evaluation Principles.
