Analog Display 100A DIN Rail Single Phase kWh Meter with Pulse Output

In modern electrical distribution, reliable energy measurement is no longer a background function; it is a core requirement for cost control, safety, operational transparency, and energy efficiency. The Analog Display 100A DIN Rail Single Phase Electronic kWh Meter with Pulse Output is designed for installations that require straightforward active energy measurement, compact DIN rail mounting, and dependable pulse communication for monitoring systems. Built for single phase two wire networks, it combines direct 100A load capacity, analog energy indication, and a pulse output in a compact two-module enclosure.

This article focuses on the product’s technical value, installation advantages, application flexibility, competitive strengths, and the manufacturing capabilities behind it. The meter is particularly suitable for residential distribution boards, commercial sub-metering panels, rental properties, solar generation measurement, equipment-level energy monitoring, and general single phase energy management applications. Its balance of simplicity, mechanical robustness, electrical performance, and system connectivity makes it a practical solution for users who need accurate kWh measurement without unnecessary complexity.

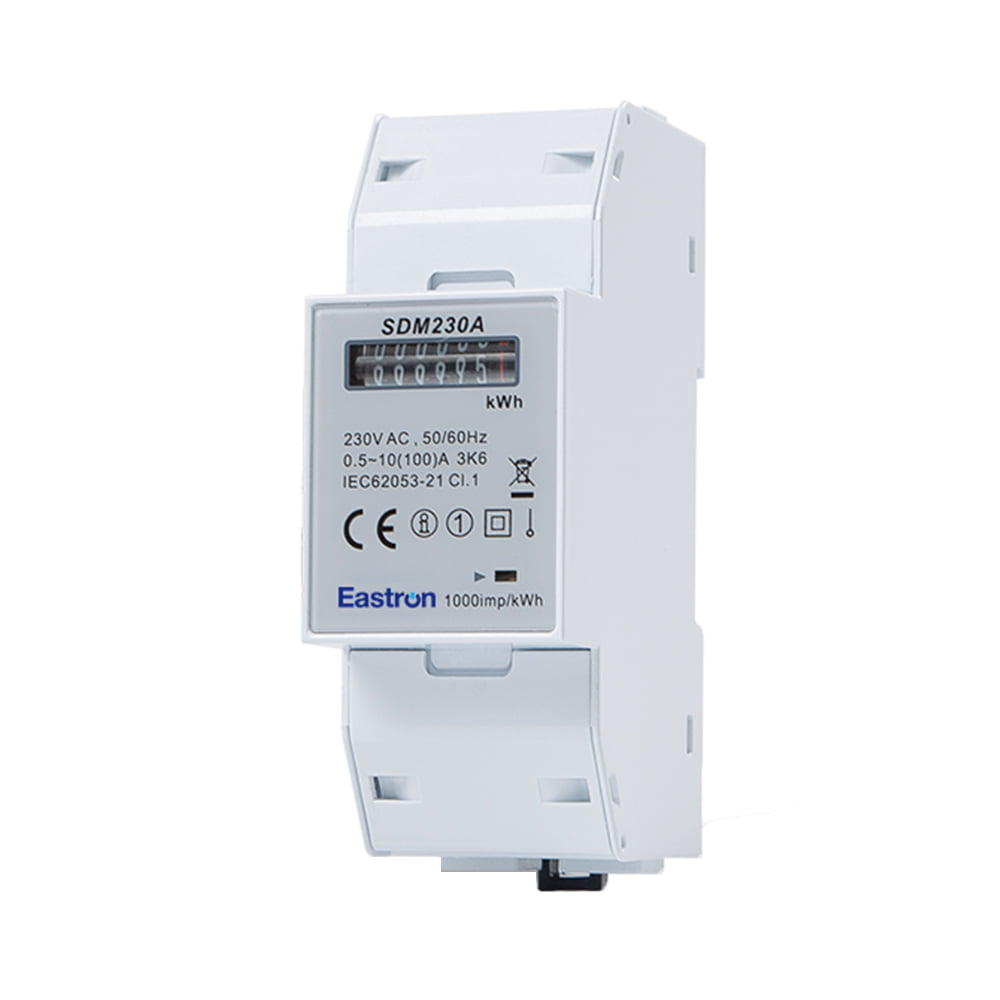

Analog Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output

Product Overview

The product is a single phase two wire electronic kWh meter designed for direct connection to AC circuits. It measures active energy on a 1P+N system and provides a clear analog display for accumulated energy readings. The meter is intended for DIN rail installation and occupies only two modules, with a width of approximately 36 mm. This compact form factor is valuable in distribution boards where space is limited, especially when multiple meters are installed side by side for sub-metering.

The meter supports a rated current of 10A and a maximum current of 100A, allowing it to be connected directly to many common single phase loads without external current transformers. Direct load measurement simplifies installation, reduces wiring components, and minimizes the risk of configuration errors that can occur when CT ratios must be selected, wired, and programmed. For electricians, panel builders, and energy service providers, this direct 100A capability can reduce installation time and improve long-term serviceability.

The product measures active energy according to established metering standards, including IEC 62053-21 Class 1.0 and EN 50470-1/3 Class B. These accuracy references make it suitable for serious energy monitoring tasks where stable measurement performance is required. The meter also offers pulse output for active energy, enabling integration with external data loggers, building management systems, energy monitoring platforms, or remote counters.

Unlike purely digital meters that may depend entirely on LCD reading behavior, this model uses an analog display. The analog display is simple, intuitive, and familiar to many users. It allows quick visual verification of accumulated consumption and can be especially useful where operators prefer traditional energy register presentation. In environments where end users, facility staff, or tenants need to read values at a glance, the analog style provides a practical advantage.

Core Technical Characteristics

The meter is designed for RMS measurement on a single phase AC system. It is rated for 230V nominal voltage and operates within 80% to 120% of rated voltage. This voltage tolerance helps support stable operation under normal power network fluctuations. The current input characteristics include 10A rated current, 100A maximum current, 0.5A minimum current, and 40mA starting current. These values are important because they define the meter’s ability to respond to both low-level and high-level consumption conditions.

The 40mA starting current is particularly useful in applications where small standby loads should not be ignored. Many modern electrical installations include devices that draw low continuous loads, such as routers, security equipment, standby electronics, ventilation controls, and small power supplies. A meter with a reasonable starting current can begin recording energy at low load levels, helping produce a more complete picture of consumption.

The pulse output is dedicated to active energy. In practical use, this means every pulse corresponds to a measured quantity of energy, enabling external equipment to count pulses and calculate consumption. Pulse outputs remain widely used because they are simple, robust, and compatible with many monitoring systems. They provide a straightforward bridge between a local meter and a broader energy management architecture.

Item	Specification	Practical Benefit
Network Type	Single phase two wire, 1P+N	Suitable for common residential and light commercial AC circuits
Measurement Type	RMS measurement on single phase AC system	Supports stable active energy measurement under normal operating conditions
Rated Voltage	230V	Matches standard single phase supply environments in many markets
Operating Voltage Range	80% to 120% of rated voltage	Maintains operation during typical voltage variation
Rated Current	10A	Provides standard metering reference current
Maximum Current	100A direct load	Allows direct connection for many high-load single phase circuits
Minimum Current	0.5A	Supports measurement over a useful low-load range
Starting Current	40mA	Helps detect small energy consumption after load begins
Accuracy	IEC 62053-21 Class 1.0, EN 50470-1/3 Class B	Provides recognized accuracy performance for active energy measurement
Display	Analog display	Offers clear accumulated kWh reading without complex menus
Output	Pulse output for active energy	Enables connection to data loggers and monitoring systems
Mounting	DIN rail	Convenient installation in standard electrical panels
Width	2 modules, approximately 36 mm	Saves panel space and supports dense multi-meter installations

Why Direct 100A Measurement Matters

One of the most important strengths of this meter is its maximum 100A direct load capability. In many single phase installations, 100A is sufficient for main sub-metering, large appliance monitoring, workshop circuits, small commercial loads, or residential distribution boards. Competitor products in compact DIN rail formats may offer lower direct current ratings, requiring users to select larger meters or use external current transformers for higher loads. External transformers increase cost, panel space, installation labor, and potential wiring errors.

Direct measurement also improves the clarity of installation. With current transformers, installers must consider primary and secondary current ratings, polarity, conductor routing, secondary circuit safety, and meter configuration. A direct connected meter avoids many of these issues. The load conductors pass through the meter terminals according to the wiring diagram, and the measured current is directly processed by the meter. This simplicity is especially valuable when installations are repeated across multiple units, such as apartment blocks, shopping units, charging points, or distributed equipment cabinets.

The 100A direct rating also provides future flexibility. Electrical consumption often increases over time as users add equipment, heating systems, air conditioning, water pumps, battery chargers, kitchen appliances, or workshop tools. A meter with generous current capacity can continue to serve the installation even when load demand grows, provided the overall electrical design remains within safety limits. This reduces the likelihood that the meter must be replaced simply because the circuit load has increased.

Compact Two-Module DIN Rail Design

Panel space is often one of the most limited resources in electrical installation. Modern distribution boards may contain main switches, miniature circuit breakers, residual current devices, surge protection devices, contactors, relays, communication modules, and terminal blocks. Adding metering should not force unnecessary panel enlargement. The two-module, 36 mm width design of this meter gives it a strong advantage in crowded enclosures.

Compared with wider meters, a two-module meter allows more circuits to be monitored in the same cabinet. In a multi-tenant building, each apartment, shop, office, or machine line may require separate energy measurement. Reducing the width of each meter can significantly reduce the total enclosure size and installation cost. For panel builders, compactness also supports cleaner layouts and shorter wiring paths.

The DIN rail format follows common installation practice. Electricians are familiar with DIN rail mounting, and the meter can be installed alongside standard protection and control devices. This helps reduce training requirements and supports faster commissioning. In service conditions, replacement or inspection is also easier because the meter is accessible in the same panel environment as related circuit devices.

Analog Display Advantages

Analog display metering remains valuable because it is simple, recognizable, and easy to audit. An analog register provides a stable accumulated energy reading that can be recorded manually during inspections, tenant billing checks, maintenance visits, or energy audits. It does not require users to navigate menus or interpret multiple digital screens. For many applications, the most important value is the cumulative kWh number, and the analog display presents that value directly.

Competitor meters with complex digital interfaces can be powerful, but complexity is not always an advantage. In installations where users simply need active energy consumption, a simple analog display reduces confusion. There are no unnecessary parameters to scroll through and fewer opportunities for misreading values. Facility managers can train staff quickly, and non-technical users can understand the reading method.

The analog display also supports continuity with traditional meter reading practices. Many building owners, property managers, and utility personnel have long experience reading mechanical-style registers. Using a familiar display style can reduce administrative errors, especially when readings are manually entered into spreadsheets, billing systems, or inspection forms.

Pulse Output for Energy Monitoring Systems

Although the display is simple, the meter is not isolated from modern monitoring needs. The pulse output for active energy allows the meter to connect with external systems. A pulse output is one of the most established methods of transmitting energy data from a meter to a remote device. Each pulse represents a portion of measured energy, and a receiving device can count pulses over time to calculate total energy consumption or energy use within a specific period.

This makes the meter useful in building energy management, photovoltaic generation monitoring, energy performance contracting, equipment efficiency tracking, and remote consumption logging. Because pulse signals are widely supported, integration is possible with many types of data loggers, programmable controllers, counters, gateways, and energy monitoring platforms. This gives users the ability to combine local analog reading with digital data collection.

Compared with meters that only provide local display, the pulse output adds a major advantage. Manual readings may be sufficient for occasional billing, but automated pulse collection can provide time-based data. For example, a facility manager can compare daily or hourly energy consumption patterns, identify abnormal usage, detect equipment left running, or allocate costs more accurately. The pulse output is therefore a practical bridge between economical hardware and smarter energy management.

Accuracy and Standards-Based Confidence

Energy measurement depends on trust. If users rely on a meter for billing, cost allocation, efficiency analysis, or operational decisions, they need confidence that the meter is designed according to recognized performance standards. This product’s active energy measurement accuracy is specified according to IEC 62053-21 Class 1.0 and EN 50470-1/3 Class B. These references are widely recognized in the metering industry and help position the meter above low-cost devices with unclear or poorly documented measurement performance.

Class 1.0 accuracy is appropriate for many sub-metering and energy management applications. It provides a practical balance between cost and performance. In many installations, the goal is not only to know whether energy is being used, but also to quantify consumption with enough accuracy to support fair allocation and meaningful analysis. A standards-based design helps support that goal.

Accuracy is also related to manufacturing discipline. A product can be designed to meet a standard, but production quality must be controlled so that units leaving the factory remain consistent. The company behind the meter operates with a quality management system based on ISO 9001 and maintains professional testing capabilities for EMC, LVD, accuracy, and environmental verification according to IEC, EN, GB, and UL standards. This manufacturing and testing foundation helps improve product reliability and batch consistency.

Single Phase Two Wire Application Fit

The meter is designed for 1P2W networks, meaning single phase and neutral. This makes it a natural fit for many common electrical systems. Residential apartments, small offices, retail counters, workshops, garages, utility rooms, and individual equipment feeds frequently use single phase circuits. In these environments, the meter’s feature set is well matched to the actual need: active energy measurement, clear display, pulse output, compact installation, and direct current handling.

Some meters attempt to cover many advanced functions in one device, including multi-tariff billing, network communication, power quality analysis, harmonic measurement, or advanced programmable alarms. Such functions may be valuable in certain projects, but they also increase cost and complexity. This product is optimized for a more focused purpose: reliable kWh metering. That focus can be a competitive advantage when the application does not require advanced multifunction analysis.

For contractors and project buyers, selecting a focused meter can reduce procurement risk. The device performs the primary task without requiring unnecessary software configuration. It is easier to stock, easier to install, and easier to explain to users. In high-volume sub-metering projects, these practical advantages can have a direct effect on project cost and efficiency.

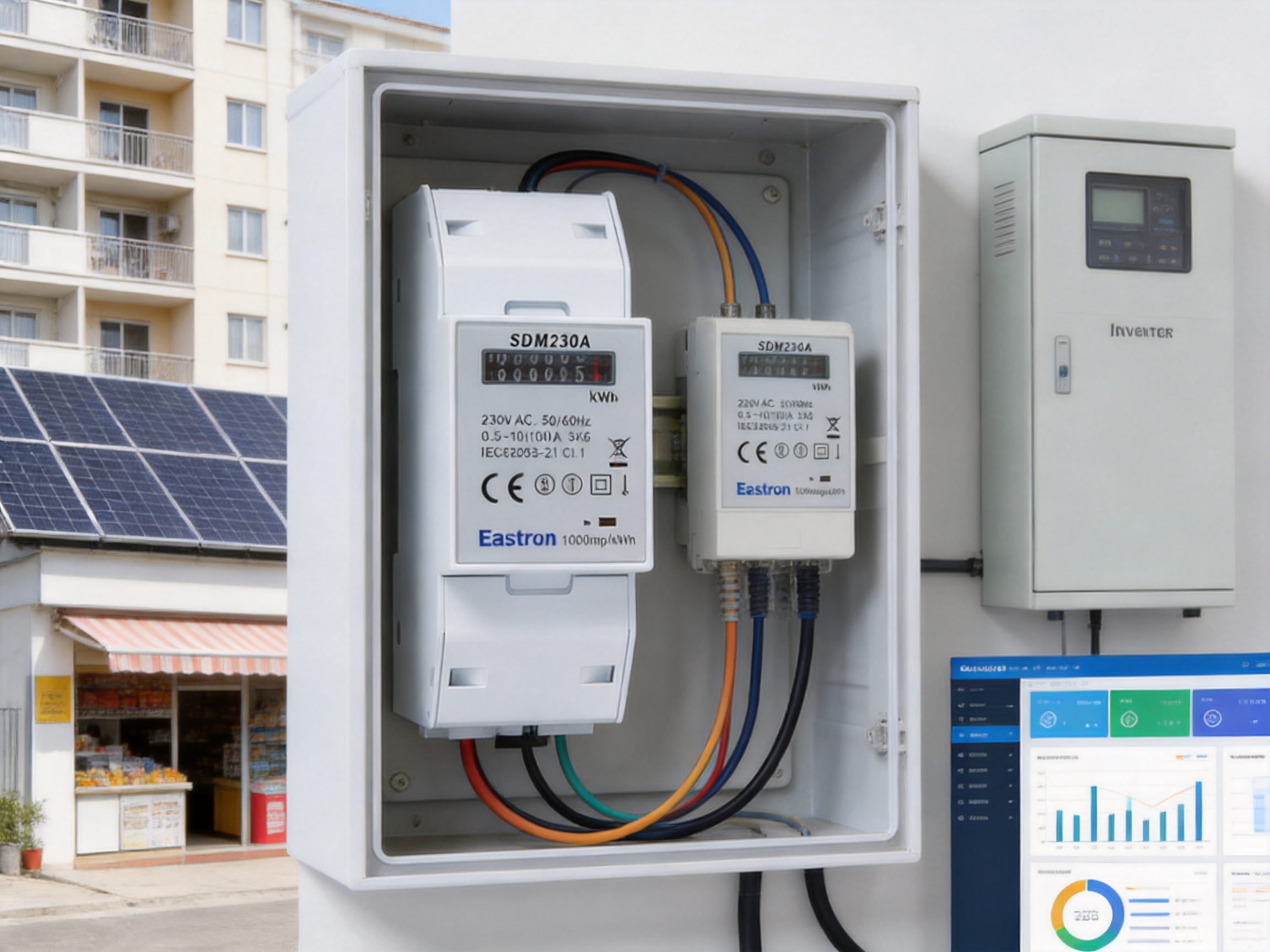

Use in Solar Generation Measurement

The product information notes that an uni-directional, anti-reverse measurement version is widely used in solar generation energy measurement. This is important because solar installations often require clear measurement of generated energy or consumed energy, depending on the metering point. In systems where reverse flow may occur, anti-reverse measurement can help ensure that the meter records energy in the intended direction.

For small photovoltaic systems, direct single phase metering is common. A compact DIN rail meter can be installed in a generation panel, inverter output circuit, or monitoring enclosure. The pulse output can then be connected to a generation monitor or data logging device to track production over time. The analog display gives installers and owners a local reference reading for maintenance checks and performance verification.

Compared with more complex solar monitoring equipment, a compact kWh meter provides an economical and reliable measurement point. It can be used as a supporting device in a larger monitoring system or as a standalone generation counter. Its value is especially strong in applications where the user wants a durable, easy-to-read meter rather than a communication-heavy device that requires network setup.

Installation and Wiring Practicality

The product includes wiring and dimensional information, which is essential for proper panel planning. For any direct connected meter, correct conductor routing and secure terminal connection are critical. The DIN rail installation method helps ensure the meter is mechanically stable, while the two-module enclosure allows it to align neatly with other panel devices.

Installers benefit from a device that does not require complex parameter programming. Because the product is an active energy meter with analog display and pulse output, commissioning is straightforward. After proper wiring, the installer can verify supply voltage, load current, display operation, and pulse output function. This reduces commissioning time compared with multifunction meters that require communication settings, CT ratio configuration, address assignment, or software tools.

For maintenance personnel, the meter’s simplicity is also valuable. Troubleshooting can focus on the circuit, terminals, display reading, and pulse connection. If the pulse signal is used by a remote system, technicians can compare local analog readings against logged values to verify integration. This dual local and remote capability supports easier fault diagnosis.

Competitive Advantages Over Ordinary kWh Meters

The product stands out against many ordinary single phase kWh meters through its combination of compactness, direct current capacity, recognized accuracy, pulse output, and analog readability. Some competing meters may offer only local display and no pulse output. Others may provide communication functions but require more setup, larger panel space, or higher cost. Some compact meters may not support 100A direct current, limiting their use in higher-load circuits.

The first competitive advantage is the 100A direct input. This allows the meter to serve a wider range of applications without external current transformers. The fewer components required, the lower the installation complexity and the fewer potential failure points. For high-volume installers, this can translate into reduced labor and more consistent installation quality.

The second advantage is the two-module width. In panel building, every millimeter matters. A compact meter allows designers to include energy measurement without sacrificing too much space. In competitive projects where enclosure size, material cost, and installation labor are carefully controlled, this compactness is not merely convenient; it is a commercial benefit.

The third advantage is the analog display. While digital displays are common, analog-style registers continue to be preferred in many reading and billing environments because they are direct and familiar. The meter is especially useful where users want a simple accumulated kWh reading without navigating through extra electrical parameters.

The fourth advantage is pulse output. The meter is simple at the front panel but still ready for system integration. This is a strong balance: the local user gets a clear analog reading, while the energy manager can collect pulse data remotely. Many low-cost meters force users to choose either simplicity or integration; this product provides both.

The fifth advantage is the support of recognized standards. Accuracy references such as IEC 62053-21 Class 1.0 and EN 50470-1/3 Class B help distinguish the meter from products with vague specifications. In energy measurement, documentation matters because buyers need assurance that performance is not based merely on marketing claims.

Manufacturing Strengths Behind the Product

A reliable meter is not only the result of electrical design. It also depends on controlled production, component selection, calibration discipline, testing capability, engineering experience, and quality management. The manufacturer of this meter, Eastron Electronic Co., Ltd., is headquartered in Jiaxing, China, near Shanghai, Hangzhou, and Jiangsu. This location gives access to a strong industrial supply chain and transportation network, supporting efficient manufacturing and international delivery.

The company develops and produces electricity meters, power analyzers, current sensors, communication modules, and management systems. This broad product range indicates deep experience in energy measurement technology rather than dependence on a single product category. Such experience is important because the design of even a simple kWh meter benefits from knowledge of metering accuracy, electromagnetic compatibility, safety design, firmware stability, enclosure engineering, and field application requirements.

The company has development teams in China and the United Kingdom. This international engineering structure supports product development from multiple market perspectives. Energy metering requirements can vary by region, and exposure to different standards, installation practices, and customer expectations helps improve product suitability. Cooperation with universities and institutions also helps bring advanced technologies and research insight into product development.

To support reliability, the company has established a professional laboratory capable of EMC, LVD, accuracy, and environmental testing according to IEC, EN, GB, and UL standards. This is a major manufacturing strength. EMC testing helps ensure that the meter can operate reliably in electrical environments where switching devices, inverters, contactors, and power electronics may create interference. LVD-related testing supports electrical safety considerations. Accuracy testing verifies metering performance. Environmental testing helps evaluate stability under different temperature and humidity conditions.

The company follows the ISO 9001 quality management system, and production is approved by SGS according to MID standards. These quality and approval references demonstrate a structured approach to manufacturing control. For buyers, this reduces risk because the product is supported by documented processes rather than informal production practices. The company also holds patented technologies in software, embedded software, and hardware, showing continued investment in innovation.

Advanced Process Control and Quality Assurance

Meter manufacturing requires consistency. Small variations in components, soldering, calibration, assembly, and test procedures can affect accuracy and reliability. A strong manufacturer manages these risks through process control and verification. The company’s professional laboratory and quality management system support the production of meters that meet electrical, accuracy, and environmental expectations.

In practical production, quality assurance for an electronic kWh meter typically includes incoming material inspection, controlled assembly, circuit verification, calibration or accuracy checking, insulation and safety-related tests, functional display inspection, pulse output verification, and final visual inspection. While each product line may have its own procedure, the presence of a professional testing environment and ISO-based management indicates that manufacturing is handled with systematic attention to repeatability.

This matters when meters are used in projects with many units. A buyer installing dozens, hundreds, or thousands of meters needs consistent behavior across the entire batch. If readings vary significantly from unit to unit, or if pulse outputs behave inconsistently, the cost of service calls and customer disputes can exceed any initial saving from a cheaper meter. A manufacturer with established testing and quality systems can help protect project profitability.

The company’s experience across electricity meters, power analyzers, current sensors, communication modules, and systems also supports vertical knowledge. A manufacturer that understands both the meter and the monitoring ecosystem can design pulse outputs and product behavior with real field integration in mind. This is an advantage over suppliers that only assemble basic meters without broader system expertise.

Reliability in Real Electrical Environments

Electrical panels are not always gentle environments. They may experience voltage variation, switching transients, temperature changes, vibration, dust, and electromagnetic interference. A kWh meter must continue to measure reliably under normal installed conditions. The product’s operating voltage range of 80% to 120% of rated voltage helps it remain functional during typical supply fluctuation.

EMC capability is particularly important today because many installations include inverters, variable speed drives, LED power supplies, switching power supplies, and electronic control equipment. These devices can create conducted and radiated interference. A meter designed and tested with EMC considerations is better positioned to maintain stable performance in such environments.

Environmental testing is also valuable. Distribution boards may be installed in utility rooms, garages, plant areas, corridors, basements, or outdoor cabinets with suitable protection. Temperature and humidity can vary significantly. Testing under environmental conditions helps validate product stability beyond ideal laboratory operation.

Application Scenarios

The meter is suitable for a wide range of single phase energy measurement tasks. In residential buildings, it can be used to measure apartment consumption, landlord supply circuits, garage power, heat pump auxiliary circuits, or shared facility loads. The analog display allows tenants or managers to verify consumption locally, while the pulse output supports remote logging if needed.

In commercial buildings, it can monitor small shops, office suites, lighting circuits, vending areas, server closets, signage circuits, or dedicated equipment feeds. Sub-metering helps allocate electricity costs fairly and encourages responsible consumption. When energy use is visible, users are more likely to identify waste and improve efficiency.

In industrial or workshop settings, the meter can measure single phase machinery, tool circuits, small process loads, compressors, pumps, or auxiliary systems. It is not a power analyzer, but for active energy accumulation it provides a cost-effective measurement point. Maintenance teams can use the readings to compare machine usage, estimate operating costs, or support preventive maintenance planning.

In renewable energy applications, the meter can support solar generation measurement, particularly where an anti-reverse measurement version is appropriate. The pulse output can feed production data into a logger, while the analog register remains available for quick inspection. This makes it useful in small photovoltaic projects and distributed generation monitoring.

In property management, the meter can be used for tenant billing support and internal cost allocation. Its direct reading style helps simplify administrative procedures. For landlords and facility operators, a reliable sub-meter can reduce disputes by providing transparent consumption records.

Energy Management Value

Energy management begins with measurement. Without reliable kWh data, it is difficult to identify waste, evaluate savings, or allocate costs accurately. The meter provides the essential measurement foundation for single phase circuits. Its analog display supports manual reading, while its pulse output supports automatic data collection. This combination is valuable because it allows users to begin with simple local metering and later integrate into a broader monitoring system if requirements grow.

For example, a small building may initially require only monthly manual readings. Later, the owner may decide to install a data logger to track daily energy trends. Because the meter already provides pulse output, this upgrade is possible without replacing the meter. This staged approach reduces initial investment while preserving future flexibility.

The meter also supports behavioral energy savings. When users know that energy consumption is being measured, they are more likely to switch off unused equipment, maintain appliances properly, and question abnormal consumption. Even a simple kWh meter can have a significant effect when readings are reviewed consistently.

Comparison With Multifunction Energy Meters

Multifunction energy meters provide many parameters, such as voltage, current, power factor, frequency, active power, reactive power, and communication protocols. They are valuable in advanced monitoring and power quality applications. However, they are not always the best choice for basic energy accumulation. In many cases, a focused kWh meter is more economical, easier to install, and easier to read.

The Analog Display 100A DIN Rail Single Phase Electronic kWh Meter with Pulse Output is optimized for active energy measurement. It avoids unnecessary user interface complexity while still offering pulse output for system connection. This makes it especially suitable where the required data is kWh consumption rather than a full electrical parameter set.

Compared with multifunction meters, this product may reduce training time for end users. There are fewer screens and settings, and the main reading is immediately visible. In rental or cost allocation applications, this simplicity can reduce disputes because the displayed value is clear and consistent.

Procurement Benefits for Project Buyers

Project buyers often evaluate meters based on more than unit price. They consider installation labor, documentation, reliability, supplier experience, delivery capability, standards compliance, and after-sales support. This product offers several procurement benefits. Its compact size can reduce enclosure cost. Its direct 100A capability can reduce the need for current transformers. Its pulse output can reduce future upgrade costs. Its analog display can reduce training and reading errors.

The manufacturer’s global market experience is also relevant. Products and services have been supplied to more than 50 countries across Europe, Asia-Pacific, America, the Middle East, and Africa. This international exposure indicates experience with diverse customer requirements, standards expectations, and application environments. For distributors and OEM customers, such experience can support more stable cooperation.

The company’s stated mission is to create value for customers and grow together with partners. Its professional teams for technical support and after-sales service help strengthen the product offering beyond the hardware itself. In metering projects, technical support is important because buyers may need assistance with wiring interpretation, pulse integration, model selection, and application suitability.

Design Philosophy: Practical, Focused, and Reliable

The product’s design philosophy can be summarized in three words: practical, focused, and reliable. It is practical because it addresses common installation needs: DIN rail mounting, small width, direct high-current input, visible kWh reading, and pulse output. It is focused because it concentrates on active energy measurement rather than unnecessary feature expansion. It is reliable because its performance is tied to recognized standards and supported by a manufacturer with laboratory testing and quality management capabilities.

This philosophy is well suited to today’s energy market. Not every measurement point requires advanced communication or power quality analysis. Many users simply need to know how much energy a circuit consumes. They need a meter that can be installed quickly, read easily, and trusted over time. This product fits that requirement.

Important Considerations for Users

Users should ensure that the meter is selected and installed according to the electrical characteristics of the circuit. The system should be single phase two wire, with voltage and current within the specified range. The maximum current should not exceed 100A, and conductor sizing, protection devices, and installation practices must comply with local electrical regulations.

The pulse output should be connected according to the receiving device requirements and the meter’s wiring information. When integrating with a data logger or management system, users should confirm pulse constants, input type compatibility, cable length considerations, and counting configuration. Proper setup ensures that logged energy values match the meter display.

For solar generation measurement, users should confirm whether the anti-reverse or uni-directional version is appropriate for the intended measurement point. Solar circuits can involve bidirectional energy flow depending on system configuration, so model selection should match the desired metering behavior.

Q&A Section

What type of electrical system is this meter designed for?

It is designed for single phase two wire AC systems, commonly described as 1P2W or 1P+N. It is suitable for many residential, light commercial, and equipment-level single phase circuits.

What is the maximum current the meter can handle directly?

The meter supports a maximum direct load current of 100A. This allows it to be used in many single phase circuits without external current transformers, simplifying installation and reducing component cost.

Does the meter provide communication?

The meter provides pulse output for active energy. This is not the same as advanced digital communication, but it is a reliable and widely compatible method for sending energy consumption information to external counters, data loggers, gateways, or energy monitoring systems.

Why choose an analog display instead of a digital display?

An analog display provides a simple, direct accumulated kWh reading. It is easy to read, familiar to many users, and avoids menu navigation. For basic consumption records, tenant reading, and manual inspections, this simplicity is often an advantage.

Is the meter suitable for solar energy measurement?

Yes, an uni-directional anti-reverse measurement version is widely used in solar generation energy measurement. Users should confirm the correct version and wiring arrangement according to the intended solar application.

What accuracy standards are referenced?

The meter’s active energy measurement accuracy is specified according to IEC 62053-21 Class 1.0 and EN 50470-1/3 Class B. These recognized standards help support confidence in the meter’s measurement performance.

How wide is the meter?

The meter is a two-module DIN rail device with a width of approximately 36 mm. This compact design is useful in distribution boards where panel space is limited.

What is the benefit of pulse output in a simple kWh meter?

Pulse output allows the meter to be connected to external monitoring equipment. Users can keep the benefit of a simple local analog display while also collecting consumption data remotely for energy analysis, billing support, or trend monitoring.

How does this product compare with lower-cost basic meters?

It offers several advantages, including 100A direct input, compact two-module design, pulse output, recognized accuracy references, and support from a manufacturer with professional testing and quality management capabilities. These factors can reduce installation complexity and improve long-term reliability.

What company strengths support the product?

The manufacturer has experience in electricity meters, power analyzers, current sensors, communication modules, and energy management systems. It operates professional testing facilities for EMC, LVD, accuracy, and environmental tests, follows ISO 9001 quality management, and supplies products to more than 50 countries.

Conclusion

The Analog Display 100A DIN Rail Single Phase Electronic kWh Meter with Pulse Output is a strong solution for users who need dependable active energy measurement in a compact, easy-to-install format. Its direct 100A load capacity reduces the need for external current transformers, while its two-module DIN rail enclosure saves valuable panel space. The analog display provides clear local readings, and the pulse output enables integration with monitoring systems.

Its competitive value lies in the balance between simplicity and functionality. It avoids unnecessary complexity but retains the essential features that matter in real installations: recognized accuracy, direct high-current capability, compact mounting, local readability, and remote pulse compatibility. For residential sub-metering, commercial energy allocation, equipment monitoring, solar generation measurement, and general single phase energy management, it offers a practical and efficient choice.

The manufacturing strength behind the product further enhances its appeal. Supported by professional R&D teams, laboratory testing capability, ISO-based quality management, SGS MID-related production approval, patented technologies, and international market experience, the product is backed by more than a basic assembly operation. It is part of a broader energy measurement capability focused on reliability, innovation, and customer value.

For buyers seeking a single phase kWh meter that is compact, capable, easy to read, and ready for pulse-based monitoring, this product presents a compelling combination of technical performance and practical installation advantage.

References

International Electrotechnical Commission. IEC 62053-21: Electricity Metering Equipment, Particular Requirements for Static Meters for Active Energy.

European Committee for Electrotechnical Standardization. EN 50470-1: Electricity Metering Equipment, General Requirements, Tests and Test Conditions.

European Committee for Electrotechnical Standardization. EN 50470-3: Electricity Metering Equipment, Particular Requirements for Static Meters for Active Energy.

International Organization for Standardization. ISO 9001: Quality Management Systems Requirements.

General industry guidance on DIN rail electrical installation practices and low-voltage distribution board design.

General industry guidance on pulse output energy metering and building energy monitoring system integration.

Product: Analog Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
